Laser Innovations - Innova 300 Coherent Laser

Laser Innovations services all models of small frame Coherent ion lasers. Our years of experience and technical expertise combine to insure that we will keep your system running at a fraction of the cost that you would expect.

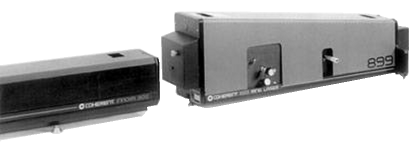

Innova 300 - Small Frame Ion Laser
Laser Systems Serviced

Coherent Innova 301 Krypton Ion Laser System
Coherent Innova 302 Krypton UV Ion Laser System
Coherent Innova 304 Argon Ion Laser System
Coherent Innova 305 Argon Ion Laser System
Coherent Innova 306 Argon Ion Laser System
Coherent Innova 307 Argon Ion Laser System
Coherent Innova 308 Argon Ion Laser System
Coherent Innova 310 Argon Ion Laser System, Sealed rear optic
Coherent Innova 318 Argon Ion Laser System, Sealed rear optic
Coherent Innova 325 UV Argon Ion Laser System, Sealed rear optic
Coherent Innova 326 UV Argon Ion Laser System, Sealed rear optic
Coherent Innova 328 UV Argon Ion Laser System, Sealed rear optic
Coherent Innova 300 FRED Ion Argon Laser System

[Return to Top]

Innova 300 - Small Frame Ion Laser
Laser Systems Available for Purchase

Coherent Innova 301 Krypton Ion Laser System
- 750 mW, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 302 Krypton UV Ion Laser System
- 150 mW, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 304 Argon Ion Laser System
- 4.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 305 Argon Ion Laser System
- 5.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 306 Argon Ion Laser System
- 6.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 307 Argon Ion Laser System
- 7.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 308 Argon Ion Laser System
- 8.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 310 Argon Ion Laser System
- 10.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 318 Argon Ion Laser System
- 8.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 325 UV Argon Ion Laser System
- 400 mW, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 326 UV Argon Ion Laser System
- 500 mW, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube
Coherent Innova 328 UV Argon Ion Laser System
- 1.0 Watt, 1 year / 2000 hour warranty on the Innova Ion Plasma Tube

[Return to Top]

Innova 300 - Small Frame Ion Laser
General Data

Power supply dimensions
Height	19.3 cm 7.6 in
Width	54.3 cm 21.3 in
Length	53.3 cm 21.0 in
Weight	39 Kg 86 lbs

Laser head dimensions
Height	17.9 cm 7.0 in
Width	15.0 cm 5.9 in
Length	122.5 cm 48.2 in
Weight	42 Kg 92 lbs

Remote module dimensions
Height	4.0 cm 1.6 in
Width	16.3 cm 6.44 in
Length	11.3 cm 4.5 in
Weight	0.5 Kg 1 lbs

[Return to Top]

Innova 300 - Small Frame Ion Laser
Specifications

System Parameter Specifications

Bore configuration	Tungsten disk, aluminum-oxide ceramic tube
Plasma Tube Cooling	Conductively water cooled
Resonator Contruction	Symmetrical SuperInvar 3-Rod Resonator
Cavity specification	Flat high reflector mirror, curved output mirror
Output Polarization	100:1 Vertical : Horizontal
Cavity length: Multiline / Single-line	1.16 m / 1.14 m
Excitation	Current regulated DC
Input voltage	208 ± 10% VAC 50 or 60 Hz, 3 phase with ground, no neutral
Maximum input current	60 Amps per phase
Maximum tube discharge current:
Argon 304	40 Amps
Argon 305	45 Amps
Argon 306	45 Amps
Krypton 301	40 Amps
Water	I-301	I-301	I-304 - I-307	I-308	I-310
Flow Rate L/Min Gal/MIn	8.5 2.3	9.6 2.6	8.5 2.3	9.6 2.6	9.6 2.6
Pressure kPa	170-415	240-415	170-415	240-415	240-415
Incoming temperature	10-35	10-30	10-35	10-30	10-30

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]

Performance Parameter Specifications

	I-301	I-302	I-304 - I-307	I-308	I-310
Beam diameter ⁽¹⁾	1.5 mm	1.35 mm	1.5 mm	1.8 mm	2.25 mm
Beam divergence (full angle)	0.8 mrad	0.45 mrad	0.5 mrad	0.4 mrad	0.7 mrad
Beam-Pointing Stability	<5.0 µrad
Beam Offset	<5.0 µm

Long-Term Power Stability (8hr)
With PowerTrack ⁽³⁾
Current Regulation	+/- 1.0% ⁽³⁾
Light Regulation	+/- 0.5% ⁽³⁾ +/- 1.0% ⁽⁴⁾
Without PowerTrack ⁽²⁾
Current Regulation	+/- 2.0%
Light Regulation	+/- 0.5%
Optical noise ⁽⁵⁾	0.2%	0.3%	0.2%	0.2%	0.2%

⁽¹⁾ Measured at 1/e² points, 514.5 nm (Argon) and 647.1 nm (Krypton) at output mirror.

⁽²⁾ Max. peak variation over 30 min. period after 1-hr warm-up.

⁽³⁾ Maximum peak variation after 15 min. warm-up.

⁽⁴⁾ Maximum peak variation after 1 min. warm-up.

⁽⁵⁾ Measured with a 10 Hz - 2 MHz wide band photodiode driving a resistive load

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]

Output Power (TEMoo) Specifications

Argon Wavelength (nm)	I-304	I-305	I-306	I-307	I-308	I-310
Multiline Visible (457.9 nm - 514.5 nm)	4.0 W	5.0 W	6.0 W	7.0 W	8.0 W	10.0 W
Multiline UV 333.4 nm - 363.8 nm	0.20	0.40	0.50	0.60	0.75
1090.0	0.04	0.05	0.07	0.07	0.10
528.7	0.20	0.35	0.42	0.42	0.55
514.5	1.70	2.00	2.40	2.40	3.20
501.7	0.30	0.40	0.48	0.48	0.48
496.5	0.50	0.60	0.72	0.72	0.95
488.0	1.30	1.50	1.80	1.80	2.40
476.5	0.50	0.60	0.72	0.72	0.95
472.7	0.12	0.20	0.24	0.24	0.24
465.8	0.10	0.15	0.18	0.18	0.18
457.9	0.25	0.35	0.42	0.42	0.56
454.5	0.05	0.12	0.14	0.14	0.14
UV 363.8	0.07	0.14	0.17	0.19	0.25
UV 351.1	0.07	0.14	0.17	0.19	0.25

Output Power (TEMoo) Specifications

Krypton Wavelength (nm)	I-301	I-302
Systems with Dual Brewster Window Tubes
Multiline Red	1000 mW	1000 mW
Multiline IR	250	250
Multiline Violet	150	600
Multiline UV 337.5 nm - 356.4 nm	150	500
793.1 - 799.3	30	30
752.5	10	10
676.4	150	150
647.1	800	800
568.2	150	150
530.9	200	200
520.8	70	70
482.5	30	30
476.2	50	50
413.1	100	300
406.7	100	200
UV 356.4	---	120
UV 350.7	---	250
Single-Frequency Powers, Visible
647.1	500	500
413.1	60	150
Single-Frequency Powers, UV
UV 350.7	---	150

Specifications are for reference only and do not constitute warranty
specifications on serviced lasers by Laser Innovations.
